SLIP-ON WELDED POSITIVE BOW CENTRALIZER

IP -1108

Slip-On Welded Positive Bow Centralizers are uniquely designed with a flat-bottom U profile of varying depths.

Slip-On design simplifies the installation process and saves time during casing running operations.

These Centralizers offer a significant reduction in frictional drag when used in deviated holes. When run inside a cased hole, they provide almost 100% Stand Off, promoting effective cementing and casing centralization.

Key Features

Consistent Standoff

Ensures proper cementing and casing centralization by providing a consistent standoff.

Easy Installation

Can be easily slipped onto the casing pipe, streamlining the installation process.

Drag Reduction

Helps reduce drag during casing deployment, improving the efficiency of drilling and completion operations.

API Standard Compliance

Ensures that centralizers meet industry-recognized quality and performance standards as per API Standard 10D.

Wide Size Range

Available in sizes ranging from 4-1/2″ to 20″, with options for special sizes or combinations upon request.

SLIP-ON WELDED BOW SPRING TURBOLIZER

IP -1126

The Non-Welded Turbolizer is a unique centralizer that features a deflector blade fitted onto a standard bow spring, distinguishing it from standard centralizers.

These specially constructed deflector blades, typically made from heat-treated spring steel, are installed on the bows to induce turbulence in the cement slurry during pumping operations. The induced turbulence improves cement slurry flow and distribution, promoting better cement bonding and well integrity.

Key Features

Flexible Deflector Blades

Designed with spring action to minimize damage while navigating the wellbore.

Versatile Application

Effective in both open hole and cased hole environments, suitable for various well construction scenarios.

Improved Cement Slurry Flow

Enhances cement slurry flow, reducing drag during casing deployment and increasing operational efficiency.

API Standard Compliance

Meets industry-recognized quality and performance standards as per API Standard 10D.

Wide Size Range

Available in sizes ranging from 4-1/2″ to 20″, with special sizes or combinations available upon request.

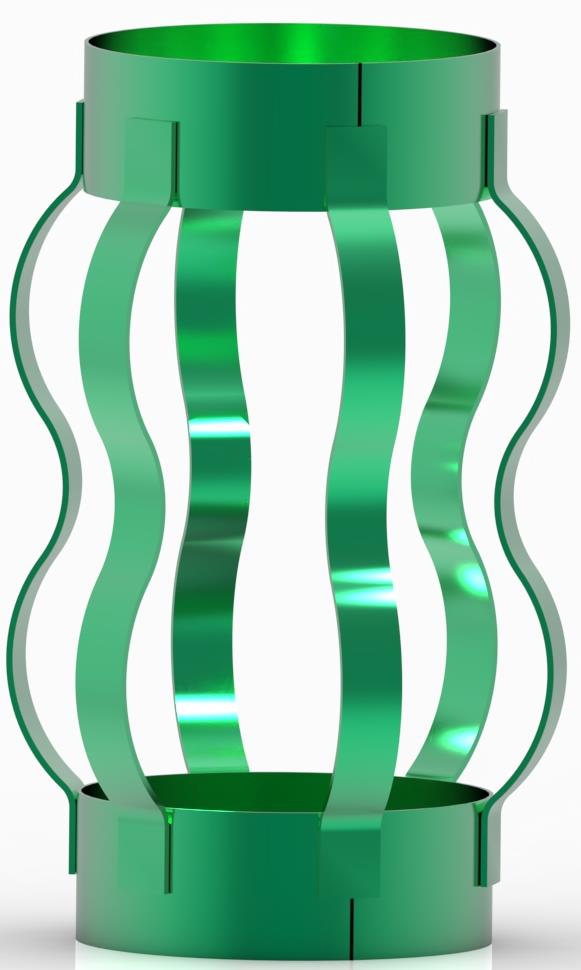

SLIP-ON Welded Semi Rigid Bow SPRING Centralizer

I P -1103

Welded Semi-Rigid centralizers have flexible spring bows welded to two end collars. The bows spring form two equal-length bows between the end rings. This welded construction enhances the centralizer’s strength and durability, making it more resistant to deformation or failure in harsh downhole conditions.

This slip-on design simplifies the installation process and saves time during casing running operations.

Key Features

Slip-On Design

Facilitates easy installation onto the casing pipe before installation.

Enhanced Durability

More resistant to failure in hard conditions.

Long-Term Performance

Constructed with durable materials for extended service life.

Balance Between Rigidity and Flexibility

Offers a balance between rigidity and flexibility for optimal performance.

API Standard Compliance

Ensures adherence to industry-recognized quality and performance standards outlined in API Standard 10D.

Wide Size Range

Available in sizes ranging from 4-1/2″ to 20″, with options for special sizes or combinations upon request.
